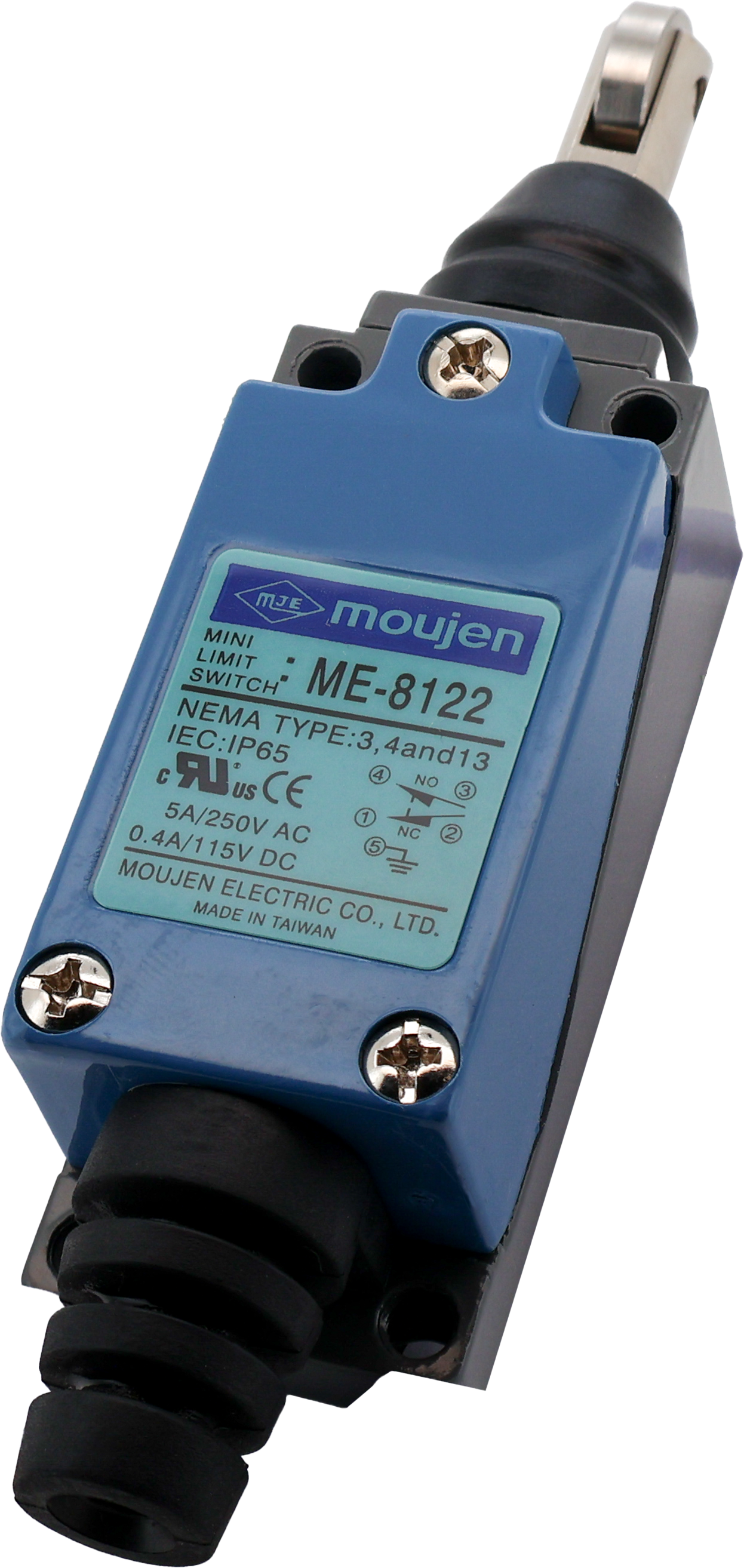

ME-8122
Price per piece:
€ 34,38
The ME-8122 is an ME-Series limit switch.The ME-8122 has a cross metallic roller plunger
Prices
Total:
€ 34,38
Specifications
Type
Description
Type
Description
IP-
65
AC Rated
5A 250V
Actuation Sequence(s)
Double Break(1)
Double Make(2)
Contact Form(s)
Form Z
Contact Resistance
15mΩ max. (initial)
DC Rated
0.4A 115V
Dust Resist
true
Electrical Contact
4 Points
Insulation Resistance
100MΩ min. (500VDC)
Oil Resist
true
Operating Speed
0.5mm to 50cm/sec
Operating Temp
-15 to 70 Celsius
Operation Frequency
Mechanically: 120/min
Electrically: 30/min
Poles & Throws
SPDT-NC-NO
Positive Opening
false
Recommended tightening forces
Mounting - 1.18~1.37 N⋅m
Enclosure cover - 0.44±0.05 N⋅m
Screw Terminal - 0.25±0.05 N⋅m
Service Life
Mechanically: 10,000,000 operations
Electrically: 300,000 operations
Storage Humidity
85% RH max
Terminal Type
Screw
Vibration
1.5mm amplitude at 10- 55Hz
Water Resist
true
