MJ2-1308
Price per piece:
€ 13,46

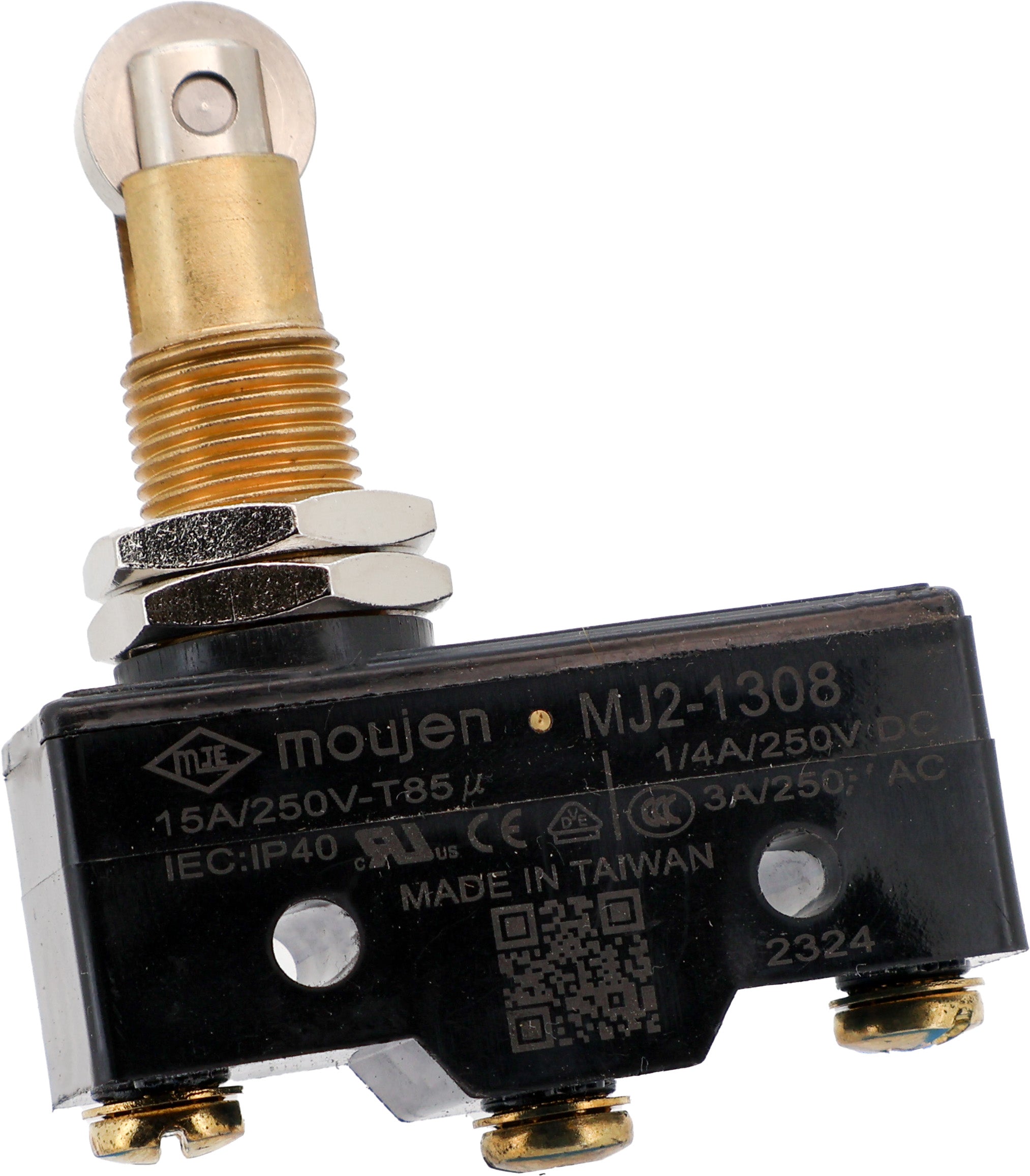

The MJ2-1308 is a limit switch from the MJ2 -Series, The MJ2-1308 has a SUS303 Roller metal plunger. A panel is mounted on this.
Prices
Total:
€ 13,46
Specifications
Type
Description
Type
Description
IP-
40
AC Rated
15A 125V-250V, 20A 125-250V
Actuation Sequence(s)
Break(1) Make (2)
Contact Form(s)
Form C
Contact Resistance
15mΩ max. (initial)
DC Rated
0.5A 125V, 0.25A 250V
Dielectric Strength
1000VAC, 50/60Hz for 1 minute between noncontinuous terminals
2000VAC, 50/60Hz for 1 minute between currentcarry part and ground
Dust Resist
false
Electrical Contact
3 Points
Insulation Resistance
100MΩ min. (500VDC)
Oil Resist
false
Operating Speed
0.01mm to 1m/sec
Operating Temp
-15 to 80 Celcius,
Operation Frequency
Mechanically: 240/min
Electrically: 20/min
Poles & Throws
SPDT
Positive Opening
false
Recommended tightening forces
Mounting 1.18~1.37 N⋅m
Panel Mount Screw Nut 2.94~4.92 N⋅m
Screw terminal 0.25±0.05 N⋅m
Service Life
Mechanically: 20,000,000 operations
Electrically: 500,000 operations
Storage Humidity
85% RH max
Terminal Type
Screw
Vibration
1.5mm amplitude at 10- 55Hz
Water Resist
false
