M4-4312

Prijs per stuk: € 46,11

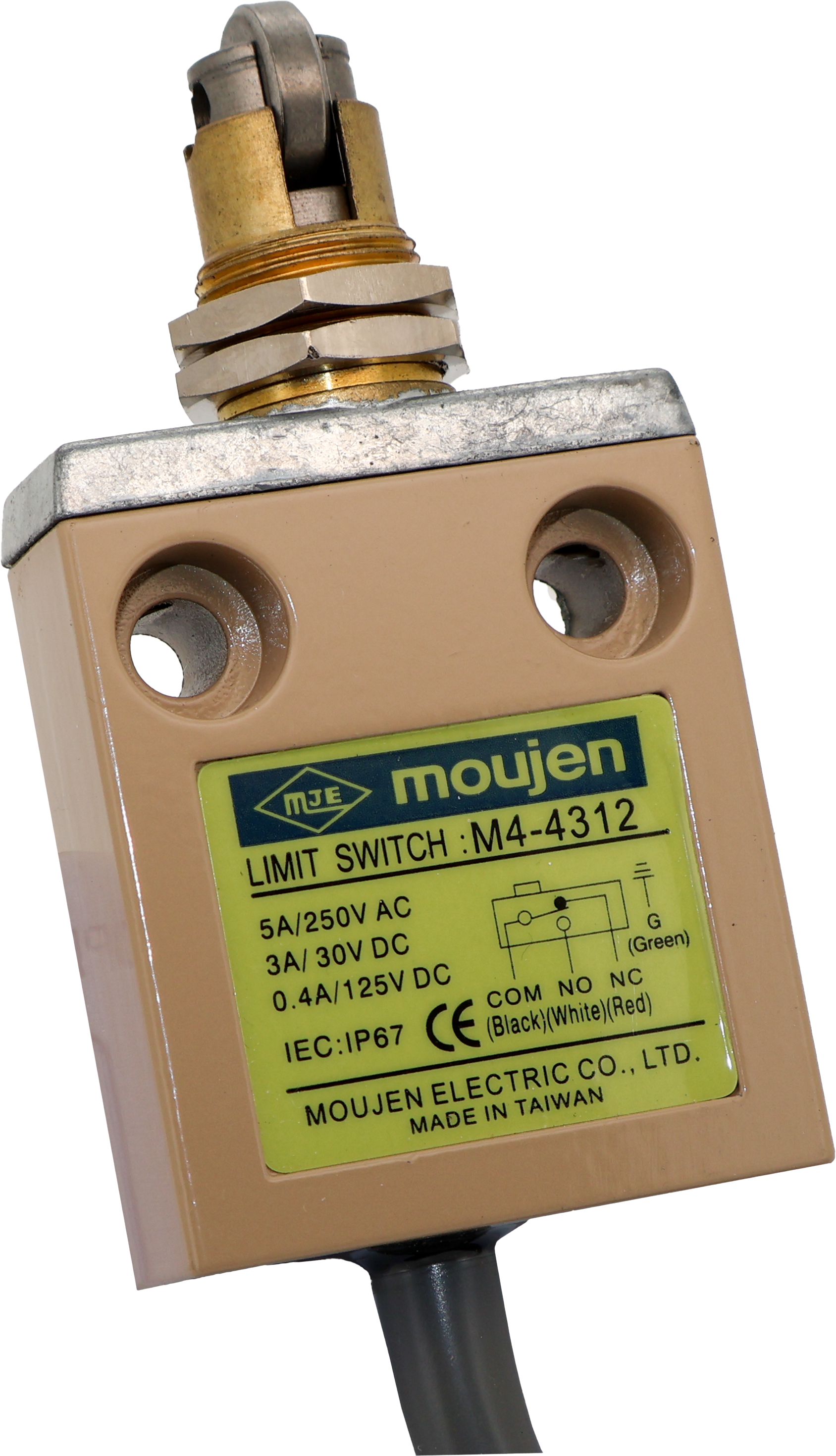

De M4-4312 is een eindschakelaar uit de M4-Series. De M4-4312 heeft een gedraaide metalen rollende drukker. Hierop is een paneel gemonteerd.

-5%
-10%
-15%
Voorraad: 20

Prijzen

Totaal: € 46,11

Specificaties

Type
Beschrijving
IP-
67
AC Rated
5A 125-250V
Actuation Sequence(s)
Break(1) Make(2)
Contact Form(s)
Form C
Contact Resistance
300mΩ max. (initial)
DC Rated
0.4A 125V,
Dielectric Strength
1000VAC, 50/60Hz for 1 minute between noncontinuous terminals
Dust Resist
true
Electrical Contact
3 Points
Insulation Resistance
100MΩ min. (500VDC)
Oil Resist
true
Operating Speed
0.1mm to 0.5m/sec
Operating Temp
-20 to 70 Celsius
Operation Frequency
Mechanically: 120/min Electrically: 30/min
Poles & Throws
SPDT
Positive Opening
false
Recommended tightening forces
Mounting M5 4.9~5.88N⋅m
Service Life
Mechanically: 2,000,000 operations Electrically: 200,000 operations
Storage Humidity
85% RH max
Terminal Type
Wire
Vibration
1.5mm amplitude at 10- 55Hz
Water Resist
true
