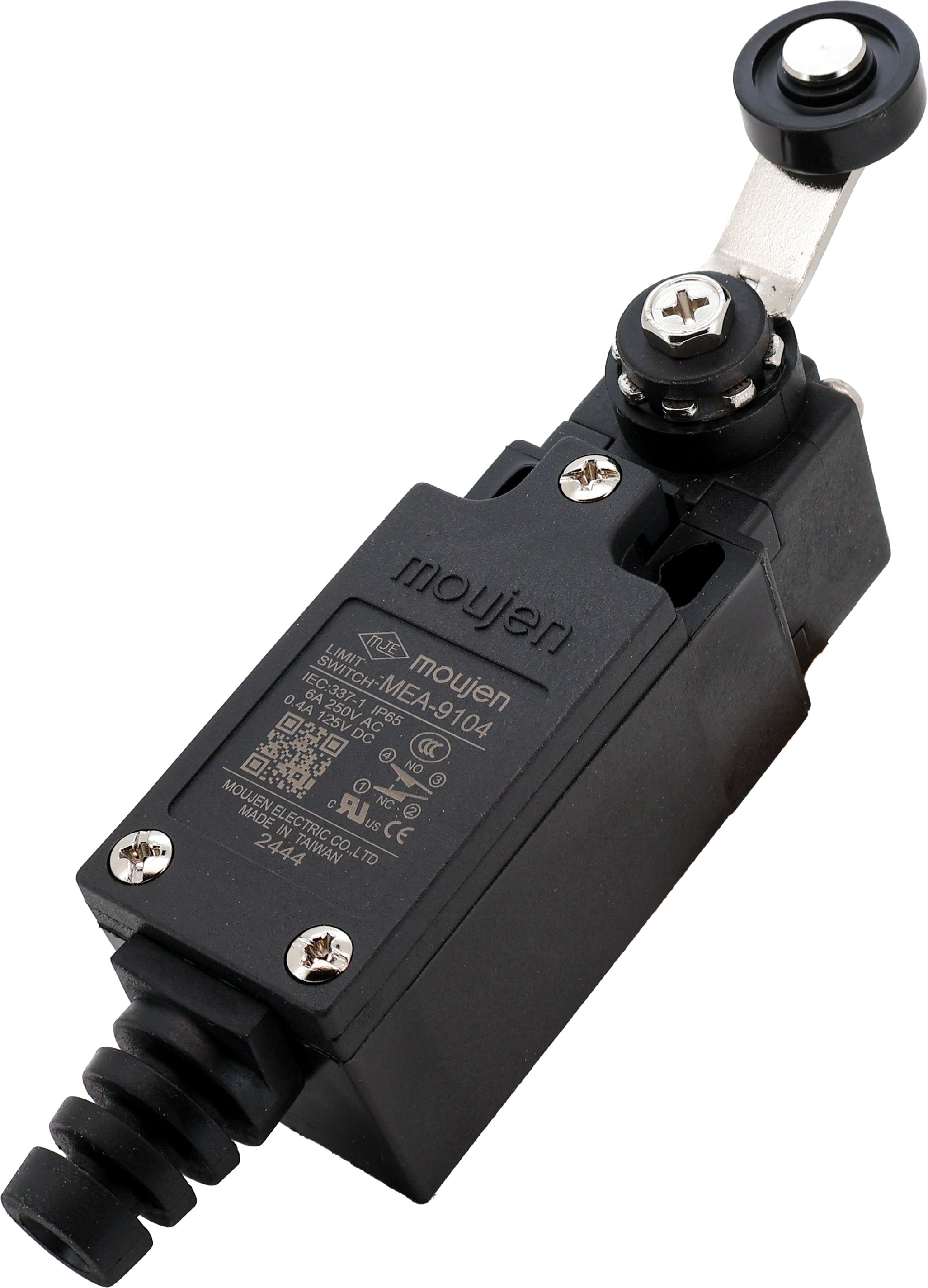

MEA-9104

Prijs per stuk: € 27,48

De MEA-9104 is een eindschakelaar uit de MEA-Series. De MEA-9104 heeft een zijwaartse rotatie en een nylon roller.

-10%
-20%
-30%
Voorraad: 450

Prijzen

Totaal: € 27,48

Specificaties

Type
Beschrijving
IP-
65
AC Rated
6A 125-250V
Actuation Sequence(s)
Double Break(1) Double Make(2)
Contact Form(s)
Form Z
Contact Resistance
15mΩ max. (initial)
DC Rated
0.4A 125V
Dielectric Strength
1000VAC, 50/60Hz for 1 minute between noncontinuous terminals
Dust Resist
true
Electrical Contact
4 Points
Insulation Resistance
100MΩ min. (500VDC)
Oil Resist
true
Operating Speed
0.5mm to 50cm/sec
Operating Temp
-15 to 70 Celsius
Operation Frequency
Mechanically: 120/min Electrically: 30/min
Poles & Throws
SPDT-NC-NO
Positive Opening
false
Recommended tightening forces
Mounting M4 1.18~1.37 N⋅m Enclosure cover 0.44±0.05 N⋅m Screw Terminal 0.29±0.05 N⋅m
Service Life
Mechanically: 10,000,000 operations Electrically: 500,000 operations
Storage Humidity
85% RH max
Terminal Type
Screw
Vibration
1.5mm amplitude at 10- 55Hz
Water Resist
true
