MEA-9112
![](/img/containers/images/shopify/product_mea-9112.jpg/19f3767a7cb1ebe9fb2d07af97ad7c3e/product_mea-9112.jpg)
Prijs per stuk:
€ 25,54

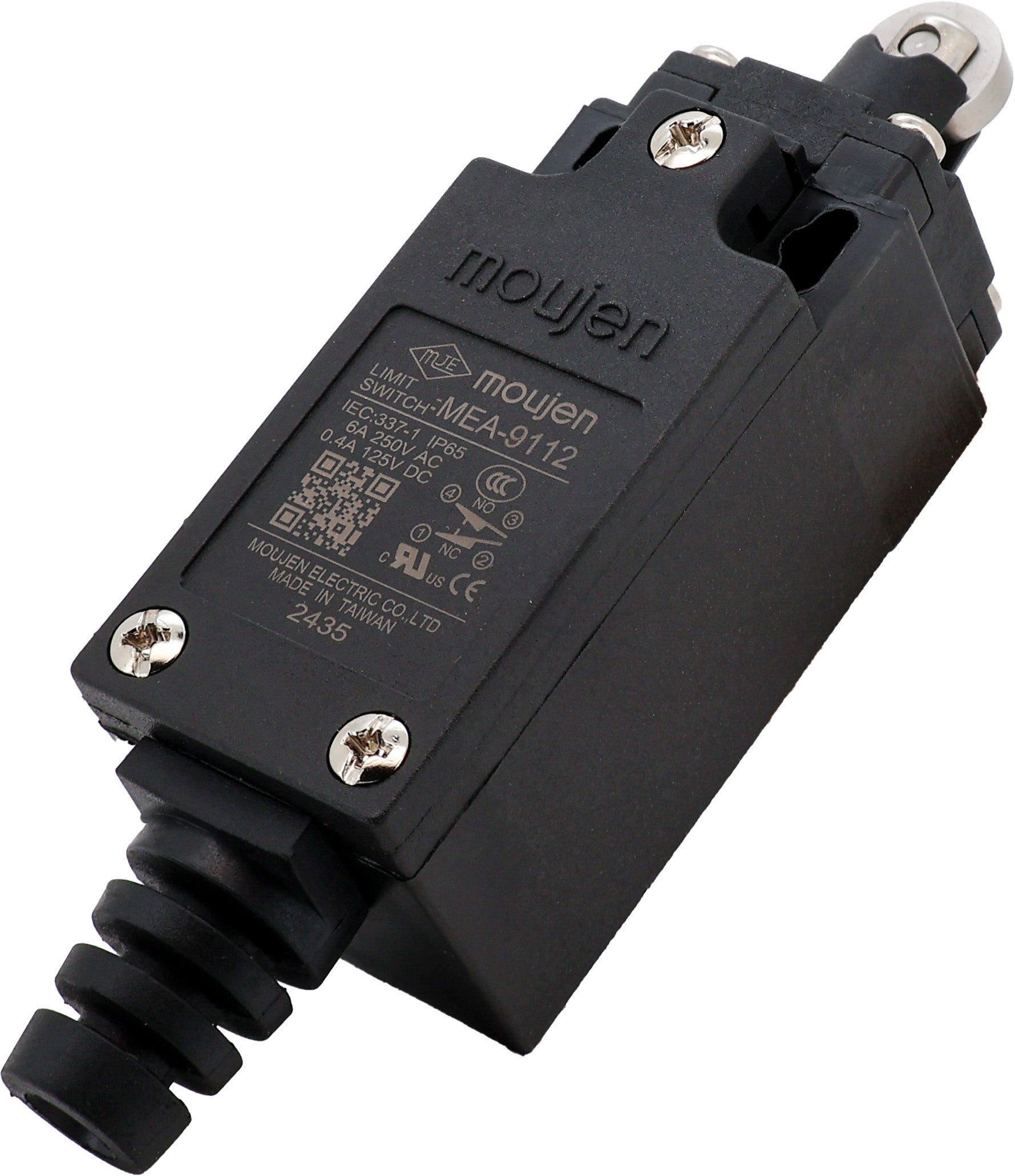

De MEA-9112 is een eindschakelaar uit de MEA-Series. De MEA-9112 heeft een metalen drukker met roller.
Prijzen
Totaal:
€ 25,54
Specificaties
Type
Beschrijving
Type
Beschrijving
IP-
65
AC Rated
6A 125-250V
Actuation Sequence(s)
Double Break(1)
Double Make(2)
Contact Form(s)
Form Z
Contact Resistance
15mΩ max. (initial)
DC Rated
0.4A 125V
Dielectric Strength
1000VAC, 50/60Hz for 1 minute between noncontinuous
terminals
Dust Resist
true
Electrical Contact
4 Points
Insulation Resistance
100MΩ min. (500VDC)
Oil Resist
true
Operating Speed
0.5mm to 50cm/sec
Operating Temp
-15 to 70 Celsius
Operation Frequency
Mechanically: 120/min
Electrically: 30/min
Poles & Throws
SPDT-NC-NO
Positive Opening
false
Recommended tightening forces
Mounting M4 1.18~1.37 N⋅m
Enclosure cover 0.44±0.05 N⋅m
Screw Terminal 0.29±0.05 N⋅m
Service Life
Mechanically: 10,000,000 operations
Electrically: 500,000 operations
Storage Humidity
85% RH max
Terminal Type
Screw
Vibration
1.5mm amplitude at 10- 55Hz
Water Resist
true
