MJ-3243

Prijs per stuk: € 66,18

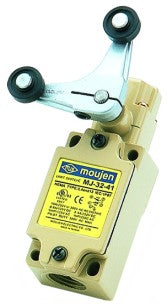

De MJ-3243 is een eindschakelaar uit de MJ-Series, De MJ-3243 heeft een voor gerichte nylon rollers, met een beweging van 90 graden.

-5%
-10%
-15%
Voorraad: 5

Prijzen

Totaal: € 66,18

Specificaties

Type
Beschrijving
IP-
65
AC Rated
10A 125-300V
Actuation Sequence(s)
Double Break(1) Double Make(2)
Contact Form(s)
Form Z
Contact Resistance
15mΩ max. (initial)
DC Rated
0.4A 250V, 0.8A 125V
Dielectric Strength
1000VAC, 50/60Hz for 1 minute between noncontinuous terminals
Dust Resist
true
Electrical Contact
4 Points
Insulation Resistance
100MΩ min. (500VDC)
Oil Resist
true
Operating Speed
1mm to 2m/sec
Operating Temp
-10 to 80 Celsius
Operation Frequency
Mechanically: 120/min Electrically: 30/min
Poles & Throws
SPDT-NC-NO
Positive Opening
false
Recommended tightening forces
Mounting M5 4.9~5.88 N⋅m Enclosure cover 1.18±0.15 N⋅m Screw terminal 0.25±0.05 N⋅m
Service Life
Mechanically: 15,000,000 operations Electrically: 500,000 operations
Storage Humidity
85% RH max
Terminal Type
Screw
Vibration
1.5mm amplitude at 10- 55Hz
Water Resist
true
