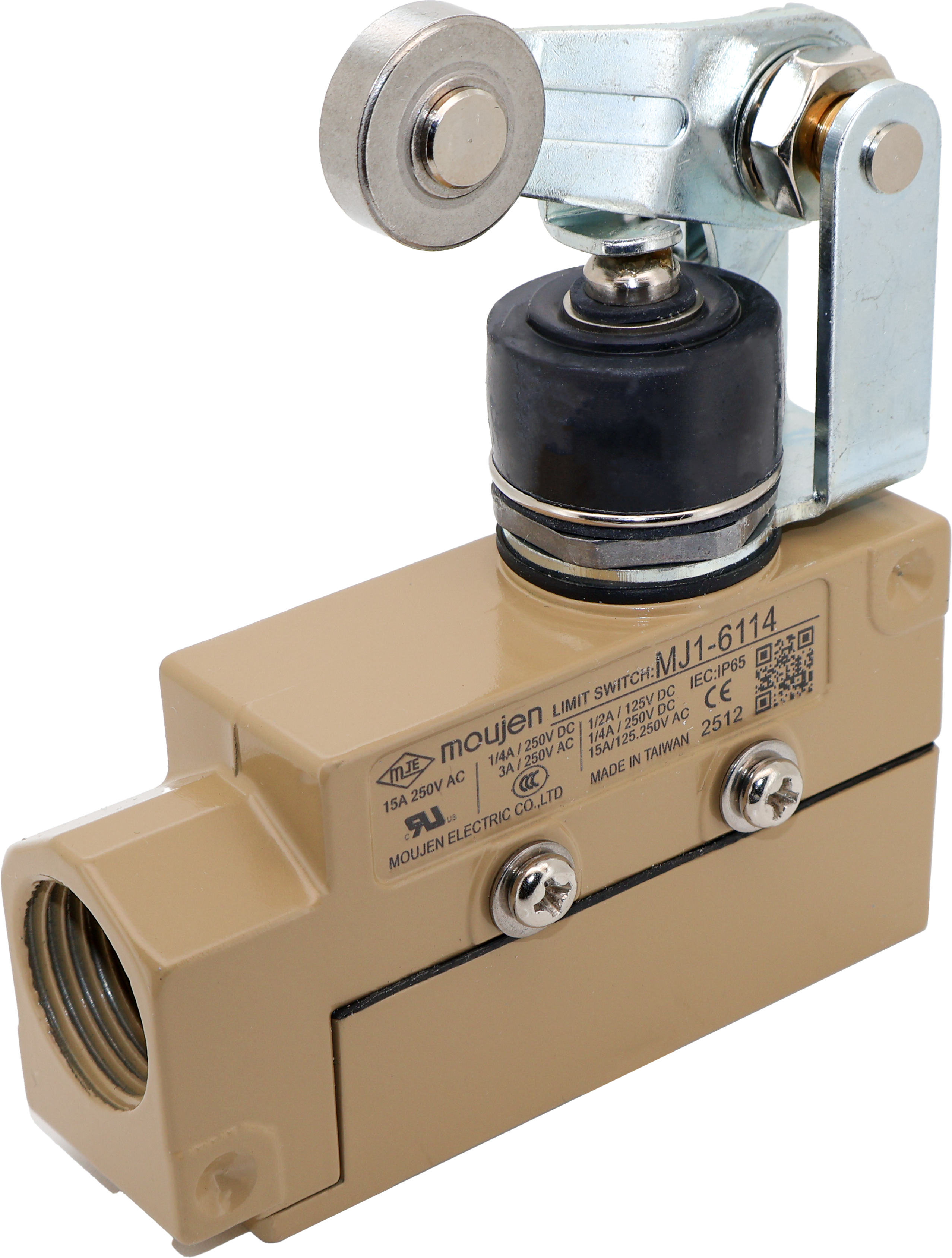

MJ1-6114

Prijs per stuk: € 44,54

De MJ1-6114 is een eindschakelaar uit de MJ1 -Series, De MJ1-6114 heeft een IP waarde van IP65, De MJ1-6114 heeft een verzegelde arm hefboom met een roller.

-5%
-10%
-15%
Voorraad: 30

Prijzen

Totaal: € 44,54

Specificaties

Type
Beschrijving
IP-
60,65
AC Rated
15A 125-250V
Actuation Sequence(s)
Break(1) Make (2)
Contact Form(s)
Form C
Contact Resistance
15mΩ max. (initial)
DC Rated
0.5A 125V
Dielectric Strength
1000VAC, 50/60Hz for 1 minute between noncontinuous terminals
Dust Resist
true
Electrical Contact
3 Points
Insulation Resistance
100MΩ min. (500VDC)
Oil Resist
true
Operating Speed
0.01mm to 1m/sec
Operating Temp
-10 to 80 Celsius
Operation Frequency
Mechanically: 240/min Electrically: 20/min
Poles & Throws
SPDT
Positive Opening
false
Recommended tightening forces
Mounting 1.18~1.37 N⋅m Enclosure cover 1.18±0.15 N⋅m Screw terminal 0.25±0.05 N⋅m
Service Life
Mechanically: 20,000,000 operations Electrically: 500,000 operations
Storage Humidity
85% RH max Mechanically
Terminal Type
Screw
Vibration
1.5mm amplitude at 10- 55Hz
Water Resist
true
